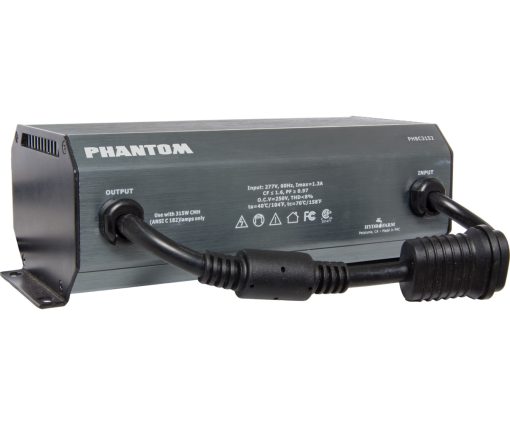

The Phantom CMh 315W ballast is a remotely operated, low frequency, square-wave digital ballast designed specifically for the 315W high intensity ceramic halide lamp, which can be used with equal effectiveness for both vegetative and flowering growth. It features internal RF shielding, multi-aspect protection circuitry, and 277V operation.
Like all ballasts in the Phantom family, the CMh 315 ballast is silent, reliable, and energy-efficient. It can easily be wall-mounted near the reflector, and can be mounted up to 30′ away from the reflector using our optional lamp cord extensions. Includes an 8′ power cord, and operating instructions.
Phantom 315W features:
Low Frequency, square wave technology provides much greater current stability and consistency in output levels, as well as low acoustic resonance
Up to 30′ lamp striking distance: Separate the ballast from your reflector by 30′ of distance if necessary (optional lamp cord extensions may be needed)
Wired for 277V operation
Includes a pre-wired 8′ 16/3 AWG power cord with EMI suppression and NEMA L7-15P twist lock plug
Multi-aspect Protection Circuitry: Includes short circuit protection, open circuit protection, overvoltage protection, under voltage protection, overcurrent protection, hot lamp startup protection, lightning protection, overheat protection, lamp failure protection, and lamp life warning
*Important – hot re-strike can take up to 15 minutes. The lamp will take longer to cool down since it has two layers of glass. Please allow enough time for ignition. Philips recommends that you do not operate the lamp for less than 3 minutes or this can cause ignition issues.
